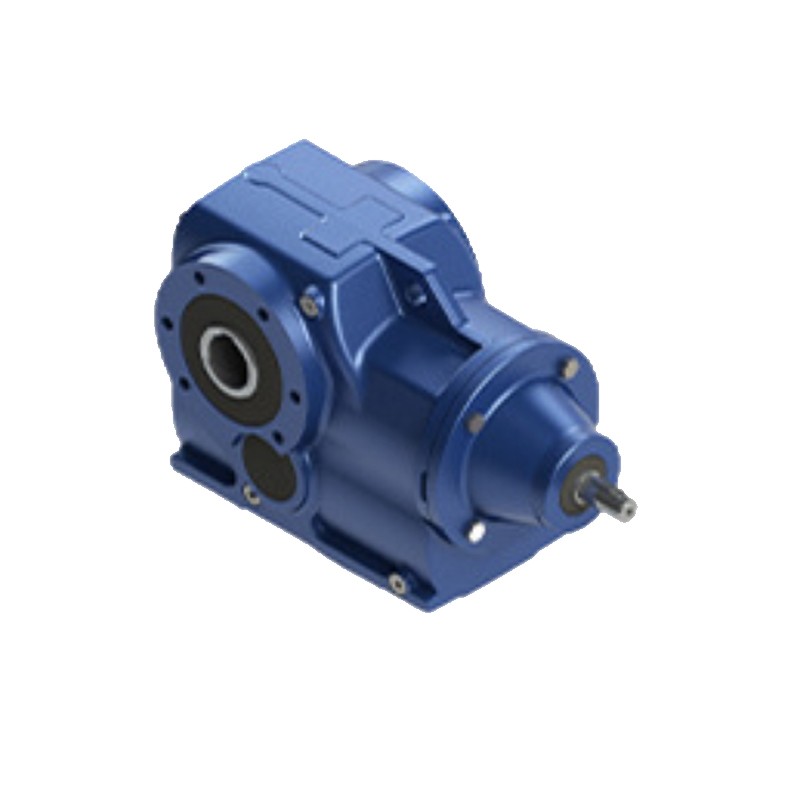

K47 K helical-bevelgear motor

K Series Spiral bevel gear reducer motor
Factory price：Email contact
Payment terms：wire transfer T/T 100%
Rroduct packaging：plywood case
Offshore port：Shanghai / Ningbo port
Quality assurance：1 year
Minimum order quantity：10 pieces
The fastest delivery time is：7~15 days
Country of origin：China
Customized logo：50Piece
Supply capacity：30 day（1500Piece）
Attachment INQUIRY EMAIL

K series helical-bevel gear units,Thanks to their long maintenance-free operating life and their wear-free gearing, our helical-bevel gear units are – technically speaking – economical right-angle gear units. high degree of efficiency and gearing with high fatigue strength.
The compact design of all our gear units is most obvious in our helical-bevel gear units. This property is particularly interesting, for example, for machine applications with limited space available. Here, you need powerful drive technology with a compact design. This is just the right environment for our helical-bevel gear units with a torque range from 80 to 50,000 Nm.

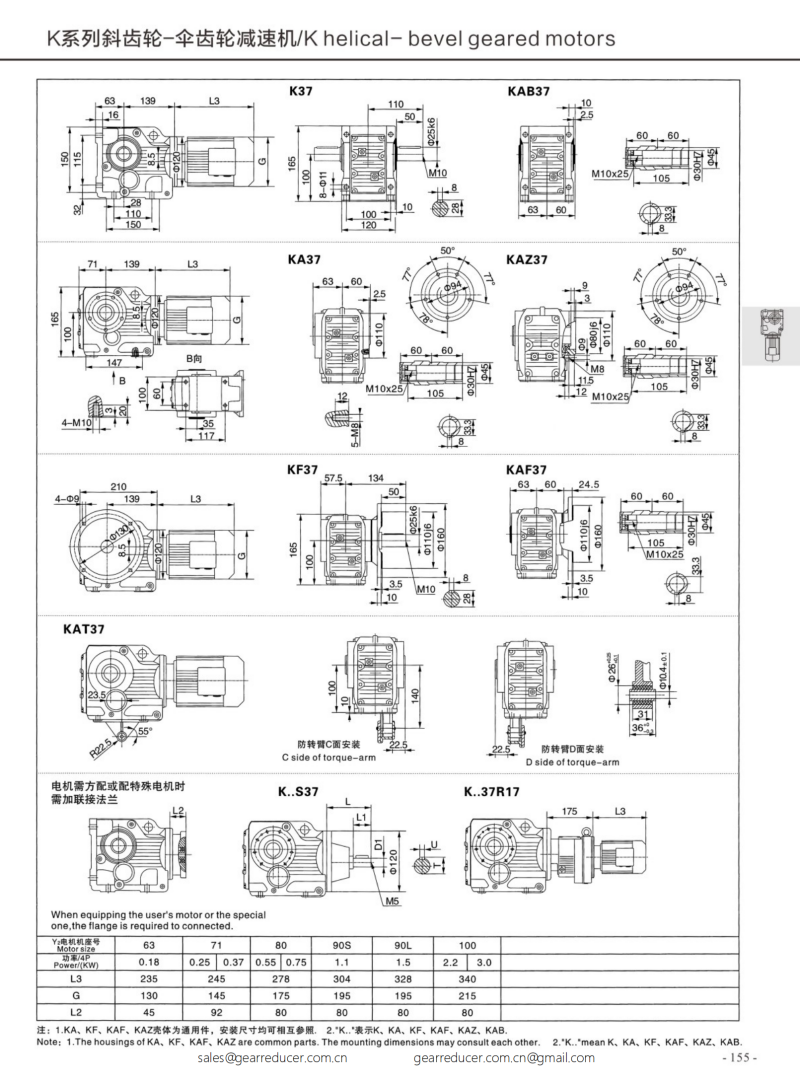

Gear unit size
K37 K47 K57 K67 K77 K87 K97 K107 K127 K157 K167 K187
KA37 KA47 KA57 KA67 KA77 KA87 KA97 KA107 KA127 KA157 KA167 KA187
KF37 KF47 KF57 KF67 KF77 KF87 KF97 KF107 KF127 KF157 KF167 KF187
KAF37 KAF47 KAF57 KAF67 KAF77 KAF87 KAF97 KAF107 KAF127 KAF157 KAF167 KAF187
KAZ37 KAZ47 KAZ57 KAZ67 KAZ77 KAZ87 KAZ97 KAZ107 KAZ127 KAZ157 KAZ167 KAZ187
KAT37 KAT47 KAT57 KAT67 KAT77 KAT87 KAT97 KAT107 KAT127 KAT157 KAT167 KAT187
KAB37 KAB47 KAB57 KAB67 KAB77 KAB87 KAB97 KAB107 KAB127 KAB157 KAB167 KAB187

K helical-bevelgear motor
The following types of helical-bevel geared motor can be supplied.

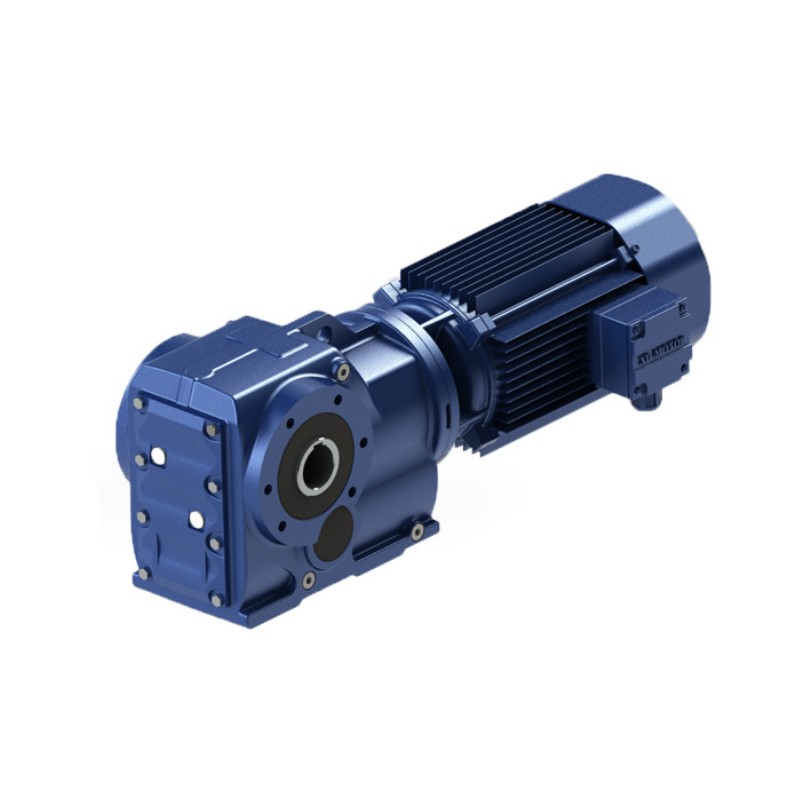

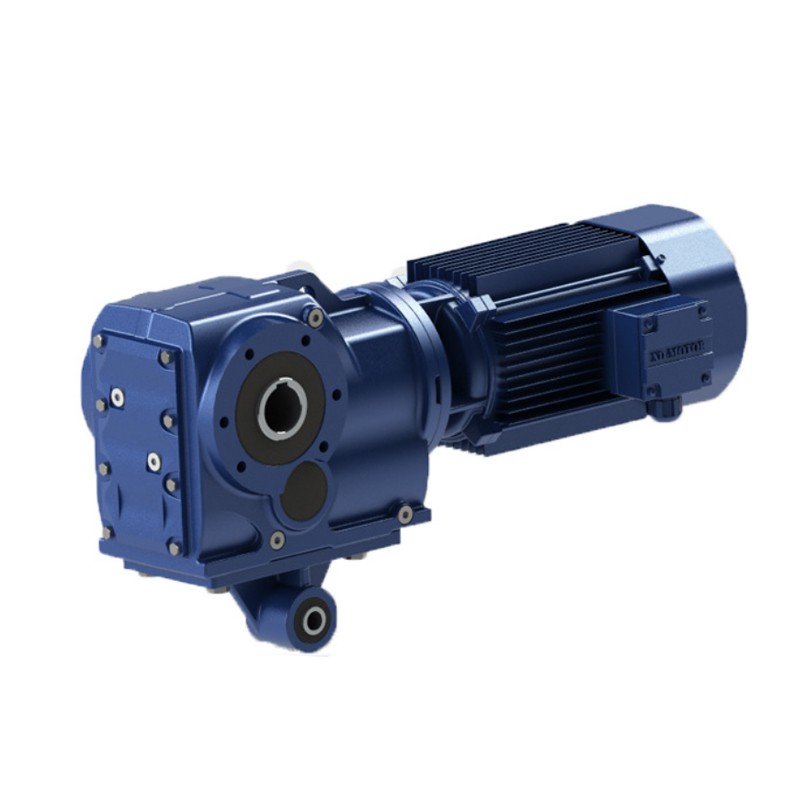

K.D Foot-mounted helical-bevel geared motor

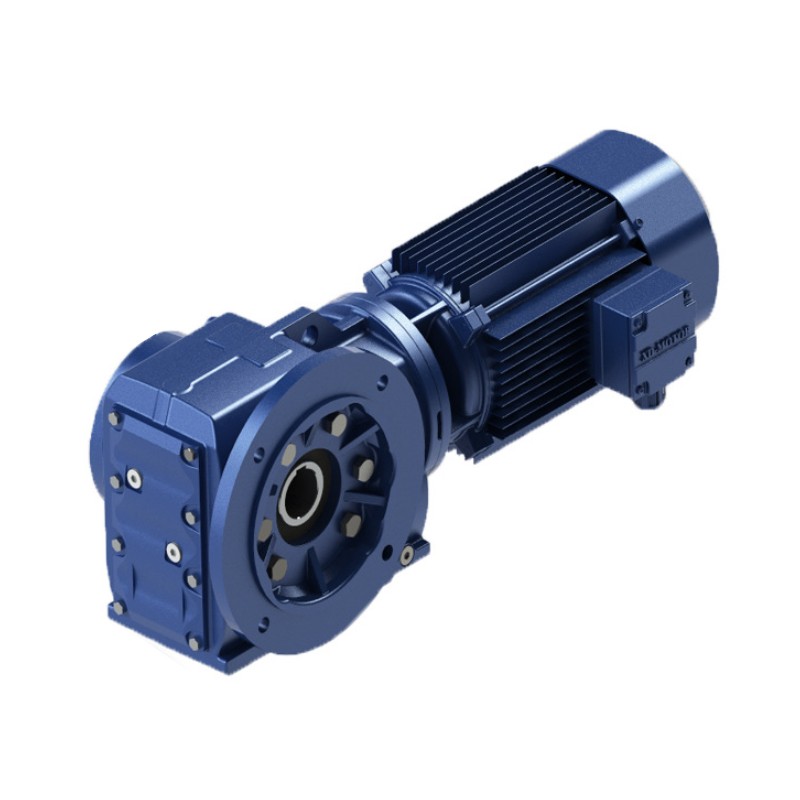

KA..B D.. Foot-mounted helical-bevelgeared motor with hollow shaft.
KV..B D.. Foot-mounted helical-bevelgeared motor with hollow shaft and splined hollow shaft to DIN 5480
KH..B D.. Foot-mounted helical-bevelgeared motor with hollow shaft and shrink disk.

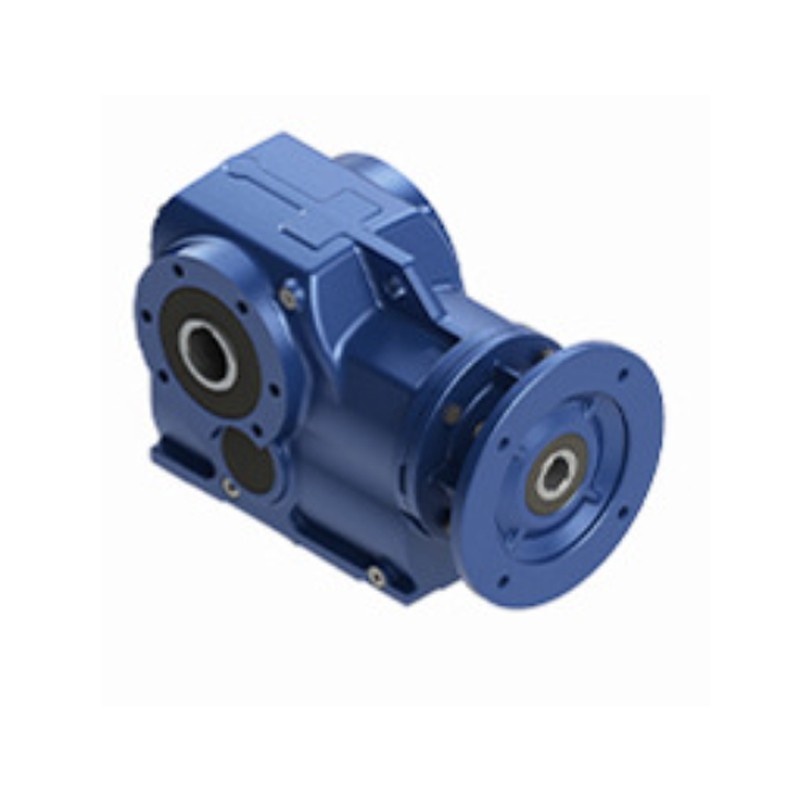

KF..D.. Helical-bevelgeared motorin B5 flange-mounted version
KAF..D.. Helical-bevelgeared motor in B5flange-mounted version with hollow shaft.
KVF..D.. Helical-bevelgeared motorin B5 flange-mounted version with hollow shaft and splined hollow shaft to DIN 5480.
