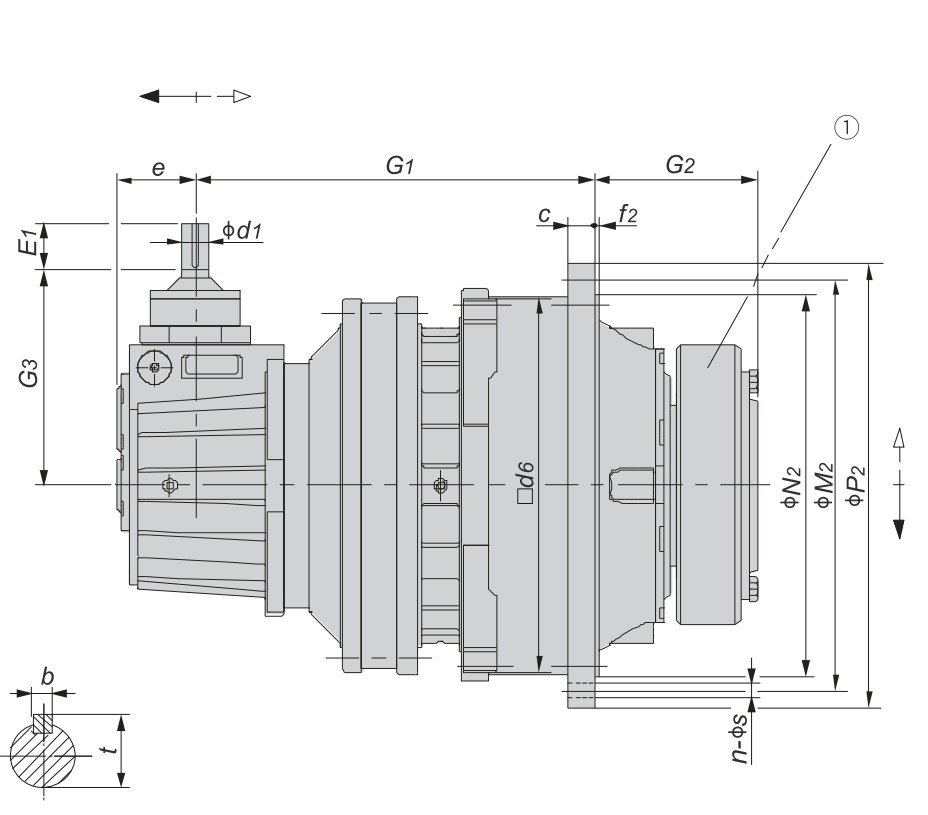

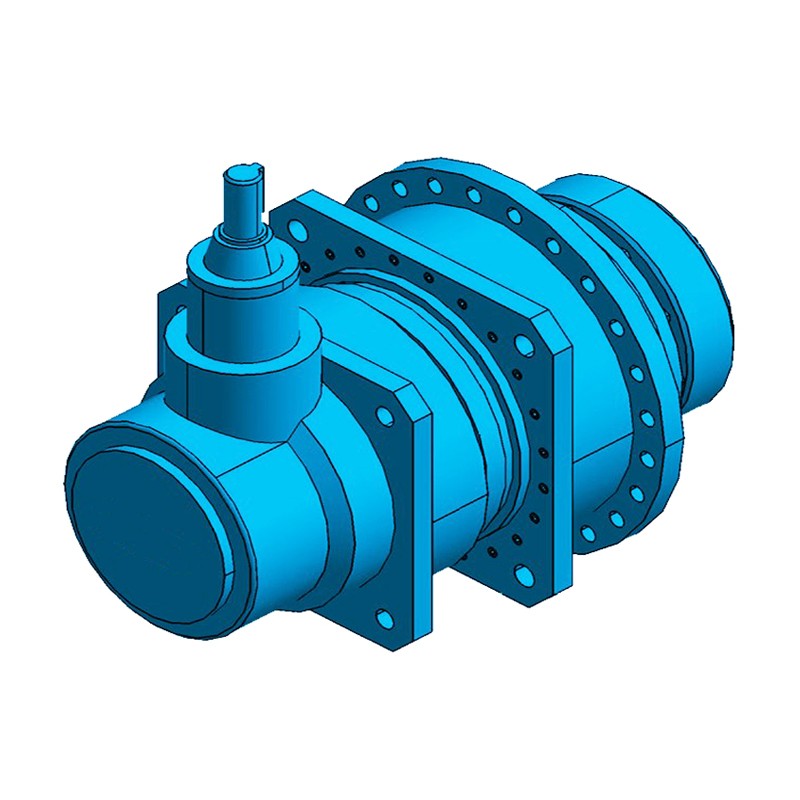

P3KA09~36 (i: 560-4000) P series planetary standard type (coaxial) with locking disk hollow shaft

Planetary Gearpox

1）The sun wheel and planetary wheel are made of high quality quenching alloy steel, the ring gears adopt in hardened surfacealloy steel, all grinding gears.
2）Cast iron housing and steel/cast iron frame,all designed by computer simulation and stress analysis method,which will enlarge the loading capacity.
3）Highly modular design makes althe spare parts standardization and reducing the stock. lmprove delivery speed.
4）All bearings using roller bearings, the force part are import brand bearing.
5）The input and output side with radial skeleton seal, wherein the
output double seals. Lots of accessories for choose and can be used with other products of our company.

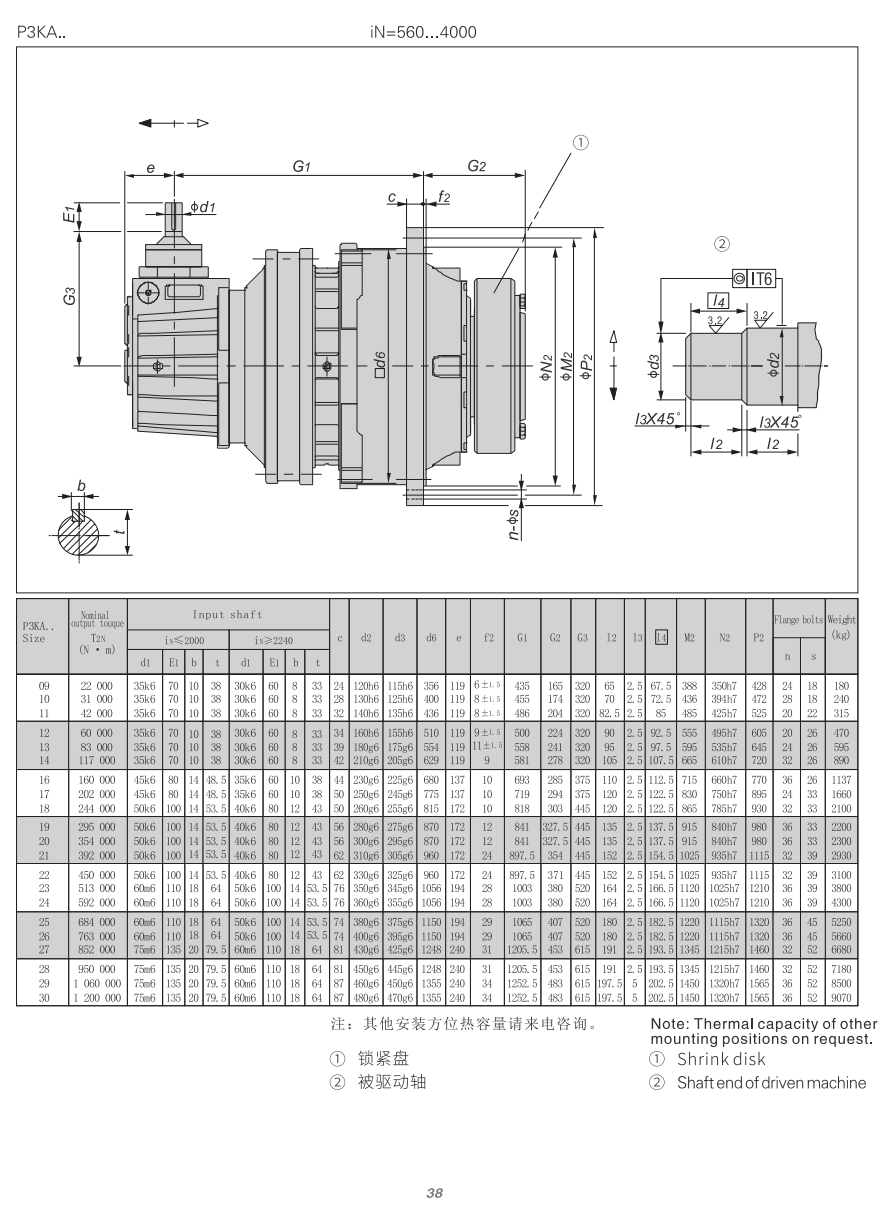

Specifications：
P3KA09 P3KA10 P3KA11 P3KA12 P3KA13 P3KA14 P3KA15 P3KA16 P3KA17 P3KA18 P3KA19 P3KA20 P3KA21 P3KA22 P3KA23 P3KA24 P3KA25 P3KA26 P3KA27 P3KA28 P3KA29 P3KA30 P3KA31 P3KA32 P3KA33 P3KA34 P3KA35 P3KA36
