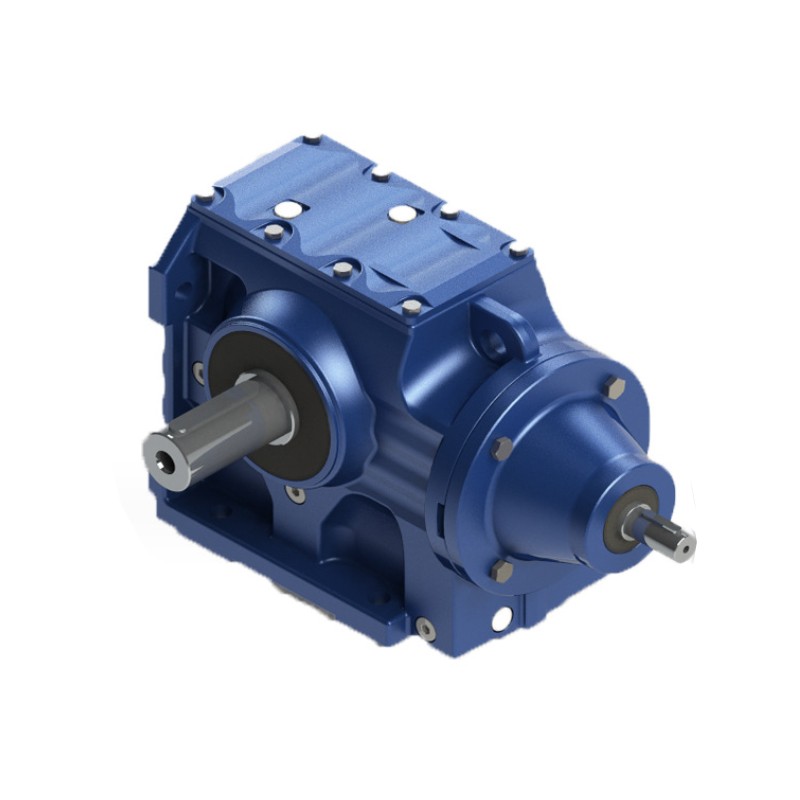

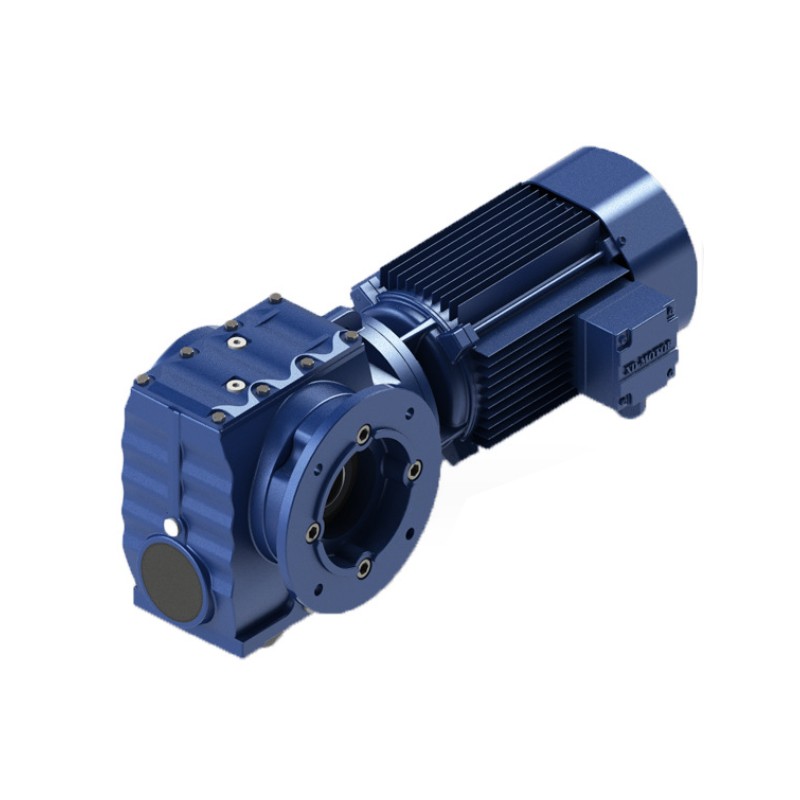

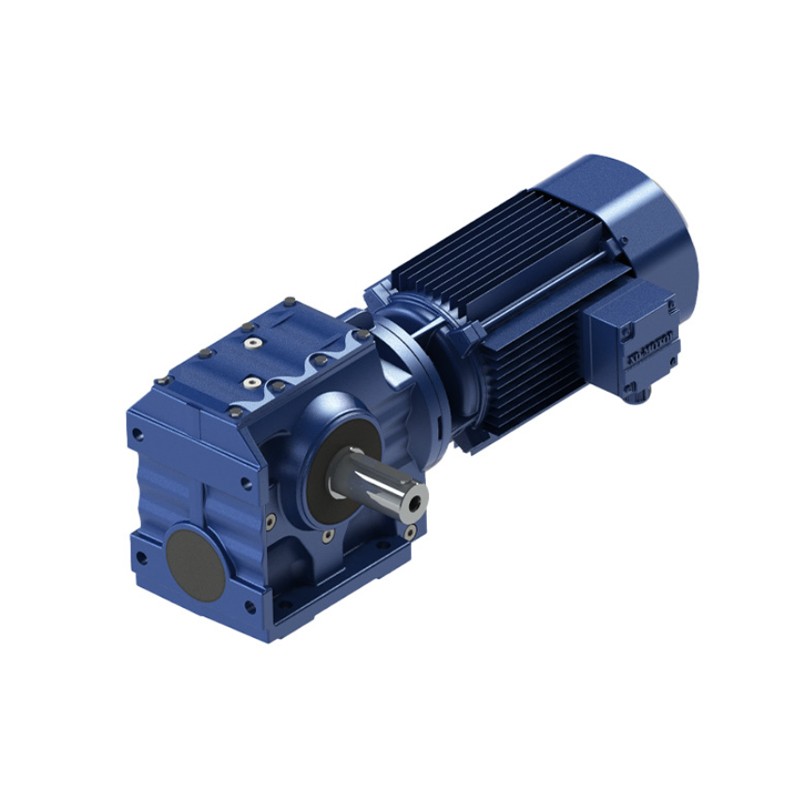

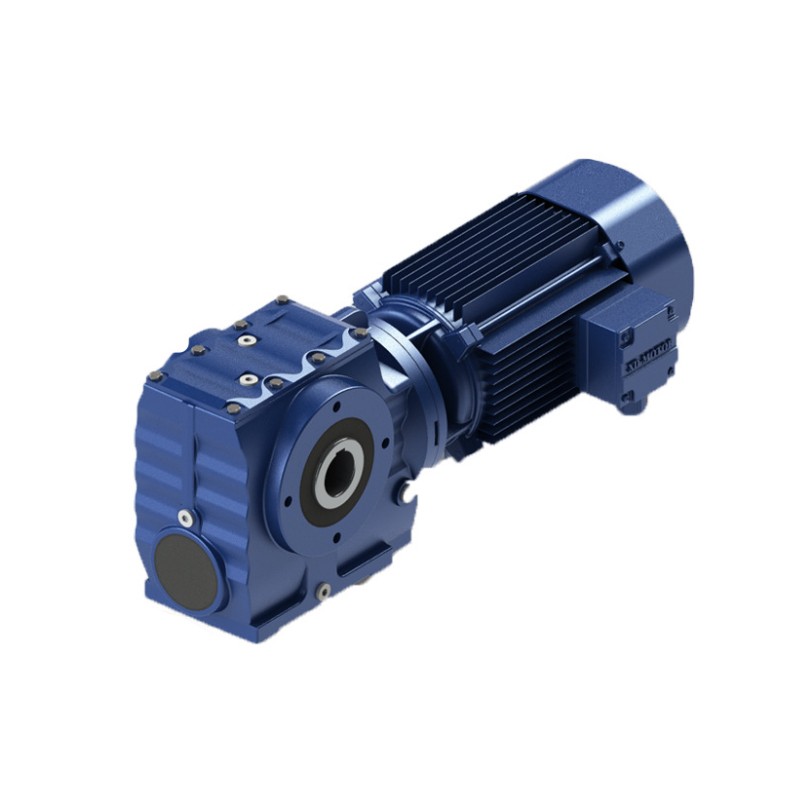

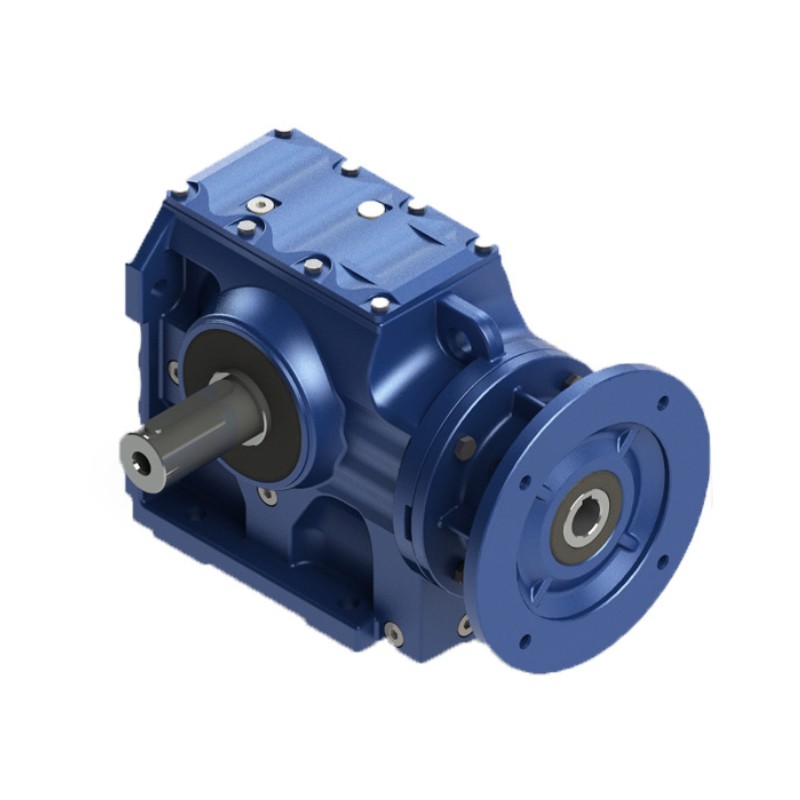

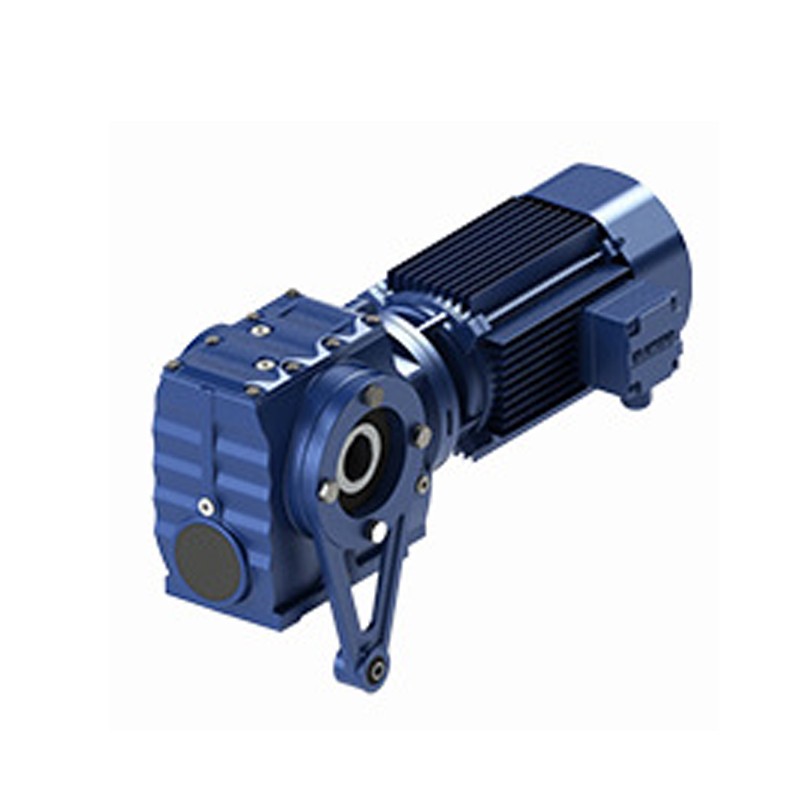

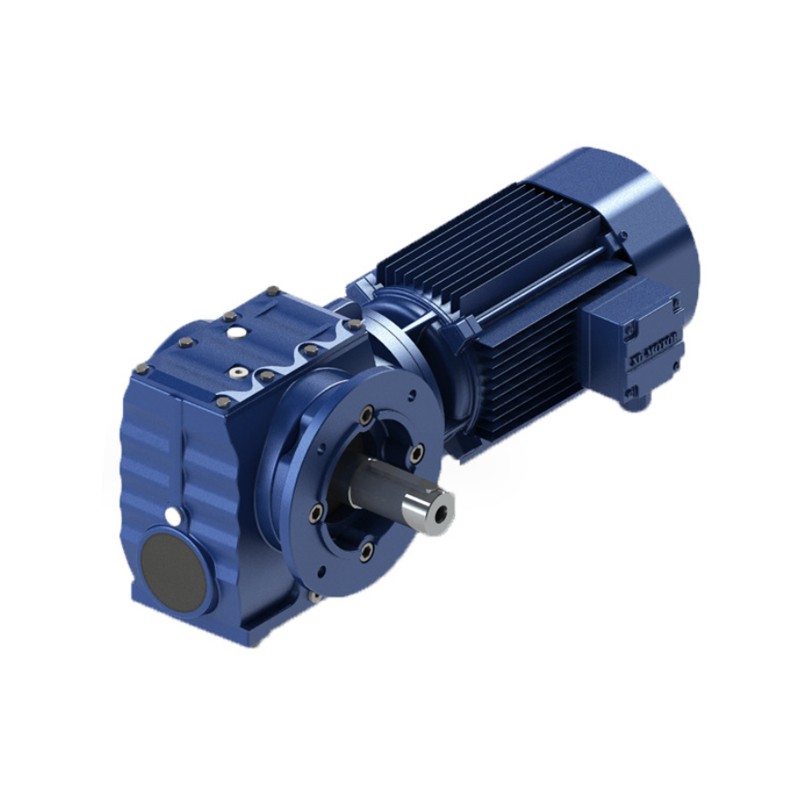

S47 S helical-worm gear motor

S series helical-worm gear units,The strength of our helical-worm gear units is their simple mechanical structure. This yields a higher efficiency than pure worm gear units. In addition, the S series gear units are quiet during peration.
Helical-worm gear units: simple design, high efficiency S series helical-worm gear units
The combination with a helical gear stage significantly increases the fficiency compared to pure helical-worm gear units. The linear power transmission makes the helical-worm gear units especially quiet in operation. Why? Power is transmitted via the worm shaft and the worm gear to the drive shaft. This dampens the torque impulses and reduces the noise
The simple design makes for cost-effectiveness. The individual adjustment of torque and speed allows for space-saving installation of our helical-worm gear units. Use the S series gear units to implement simple tasks in your machine or plant applications.

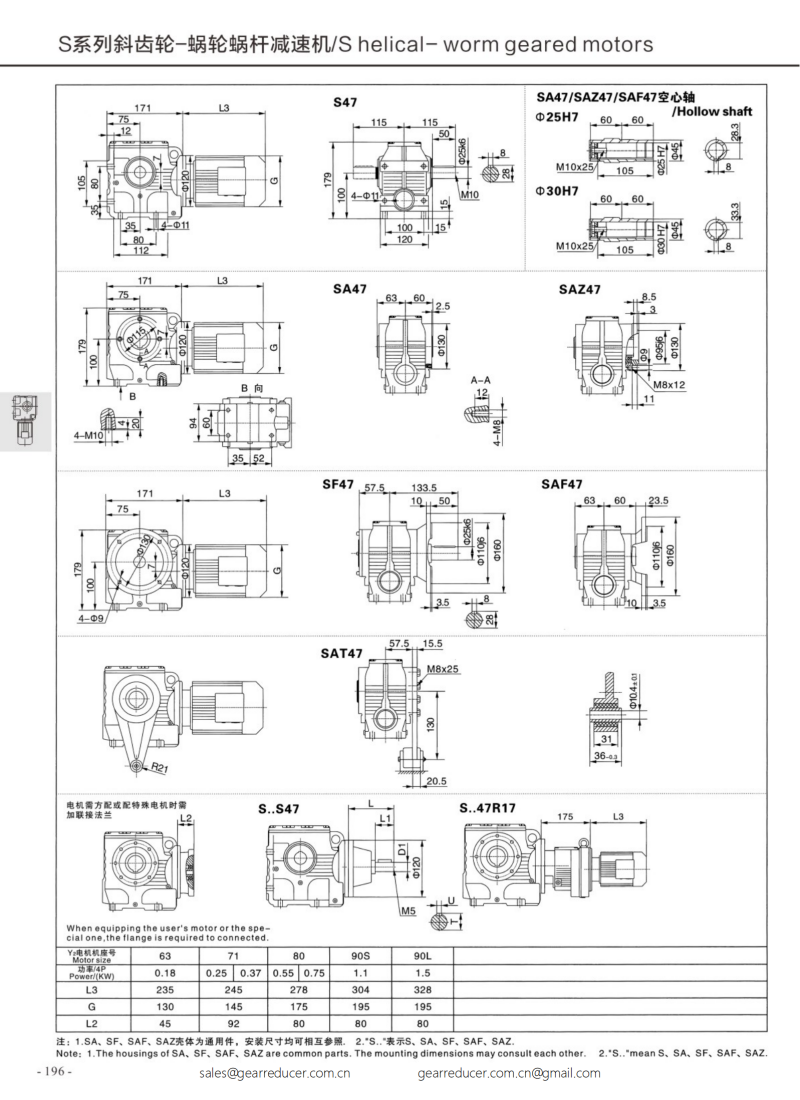

Gear unit size S37  S47  S57  S67  S77  S87  S97 SA37  SA47  SA57  SA67  SA77  SA87  SA97 SF37  SF47  SF57  SF67  SF77  SF87  SF97 SAF37  SAF47  SAF57  SAF67  SAF77  SAF87  SAF97 SAT37  SAT47  SAT57  SAT67  SAT77  SAT87  SAT97 SAZ37  SAZ47  SAZ57  SAZ67  SAZ77  SAZ87  SAZ97 Gear unit size S37  S47  S57  S67  S77  S87  S97 SA37  SA47  SA57  SA67  SA77  SA87  SA97 SF37  SF47  SF57  SF67  SF77  SF87  SF97 SAF37  SAF47  SAF57  SAF67  SAF77  SAF87  SAF97 SAT37  SAT47  SAT57  SAT67  SAT77  SAT87  SAT97 SAZ37  SAZ47  SAZ57  SAZ67  SAZ77  SAZ87  SAZ97

+For more information, please go to the download section to download the PDF files of this series for reference
