F97 F parallelshaft-helical gear motor

F Series parallel shaft spiritual gear motor
Factory price：Email contact
Payment terms：wire transfer T/T 100%
Rroduct packaging：plywood case
Offshore port：Shanghai / Ningbo port
Quality assurance：1 year
Minimum order quantity：10 pieces
The fastest delivery time is：7~15 days
Country of origin：China
Customized logo：50Piece
Supply capacity：30 day（1500Piece）
Attachment INQUIRY EMAIL

F series parallel-shaft helical gear units: perfectly matched to limited installation space.A wide range of mounting positions and variants enable a broad spectrum of applications even under difficult installation conditions – without having to compromise on the performance. And what applies to many of our gear units: long operating lives without maintenance and wear-free gearing with a high fatigue strength.
You can choose from foot-, flange- or shaft-mounted options. For precise positioning tasks, our parallel-shaft helical gear units are available with reduced backlash.
With a high torque rating from 130 Nm to 18,000 Nm, our parallel-shaft helical gear units offer great performance in many conveying and processing applications.

Gear unit size
F37 F47 F57 F67 F77 F87 F97 F107 F127 F157
FA37 FA47 FA57 FA67 FA77 FA87 FA97 FA107 FA127 FA157
FF37 FF47 FF57 FF67 FF77 FF87 FF97 FF107 FF127 FF157
FAF37 FAF47 FAF57 FAF67 FAF77 FAF87 FAF97 FAF107 FAF127 FAF157
FAZ37 FAZ47 FAZ57 FAZ67 FAZ77 FAZ87 FAZ97 FAZ107 FAZ127 FAZ157

F parallelshaft-helical gear motor
The following types of Parallel Shaft-Helical Geared Motors can be supplied:

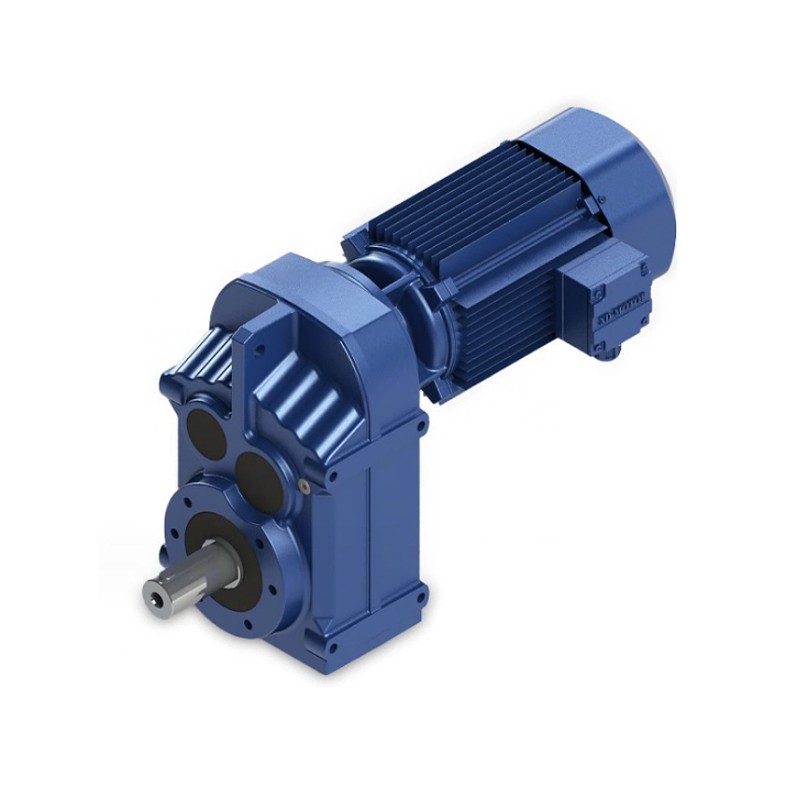

F..D.. Solid shaft Rail mount with tapped holes
FA..B D.. Hollow shaft with key Rail mount with tapped holes
FV..B D.. Aplined hollow shaft Rail mount with tappped holes
FH..B D.. Shrink disk hollow shaft Rail mount with tapped holes

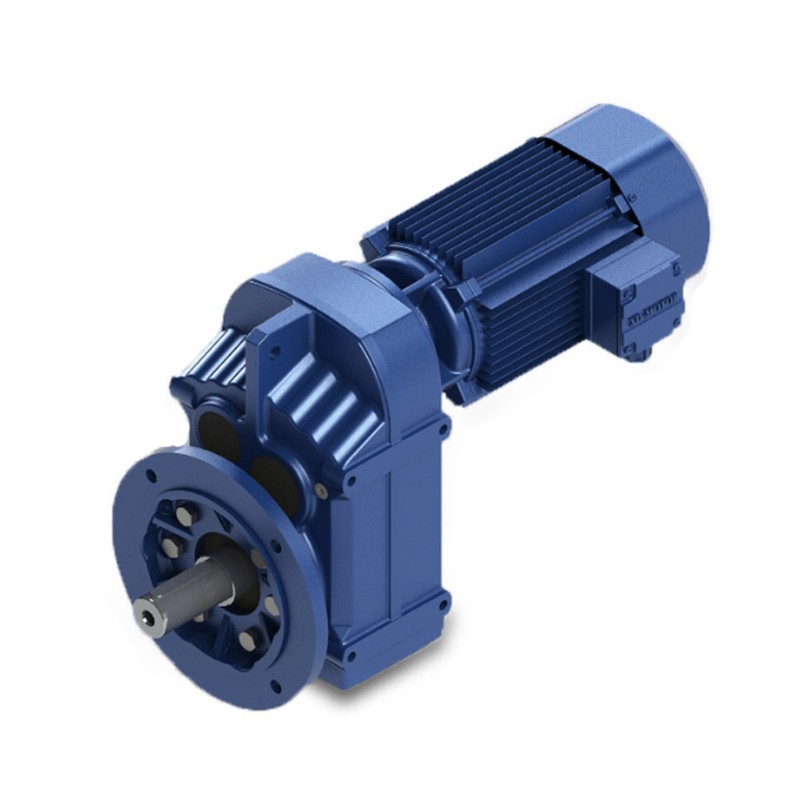

FF..D.. Solid shaft Flange mount(D & B5 style flange with through holes)

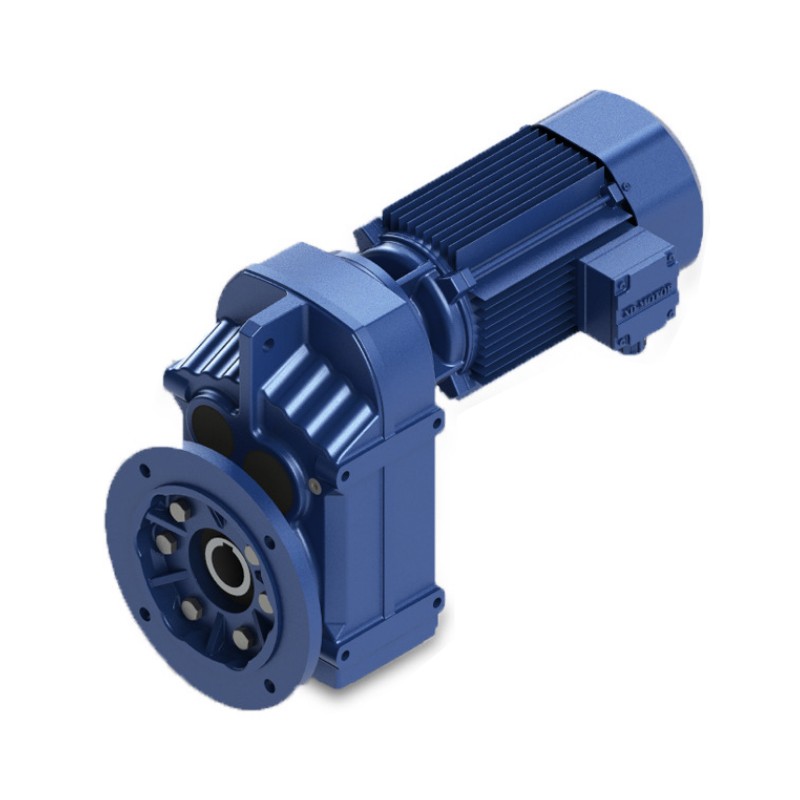

FAF.. D Hollow shaft with key Flange mount(D & B5 style flange with through holes)
FVE.D.. Hollow shaft with key Flange mount(D & B5 stvle flange with throuah holes)
FHF..D.. Shrink disk hollow shaft Flange mount(D & B5 style flange with through holes)

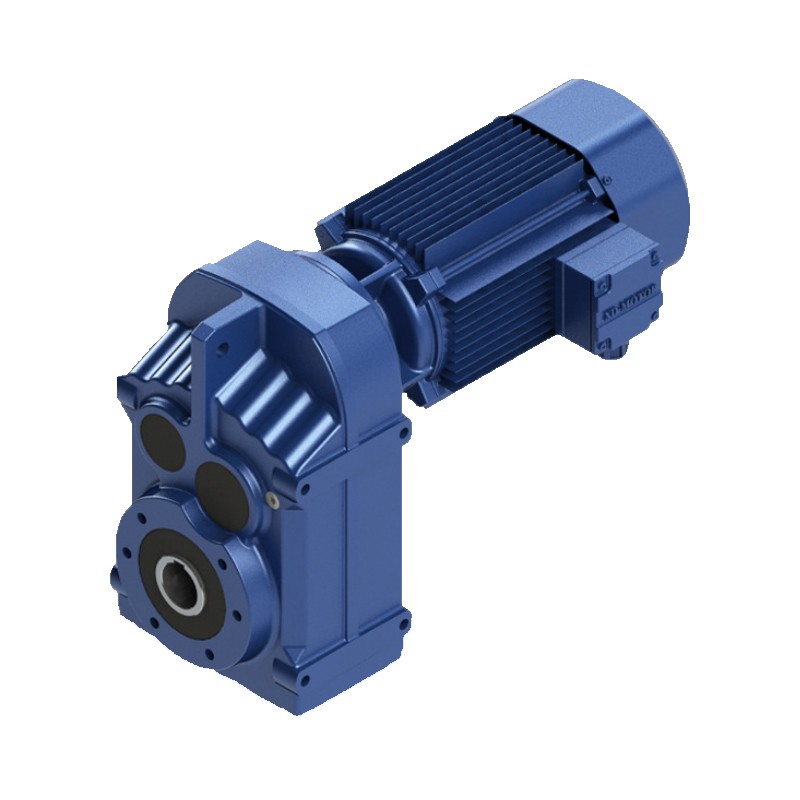

FA..D.. Hollow shaft with key Shaft mount
FV..D.. Splined hollow shaft Shaft mount
FH..D.. Shrink disk hollow shaft Shaft mount
FAZ..D.. Hollow shaft with key Face mount(C & B14 sytle flange with tapped holes)
FVZ..D.. Hollow shaft with key Face mount(C & B14 sytle flange with tapped holes)
FHZ..D.. Shrink disk hollow shaft Face mount (C & B14 style flange with tapped holes)
