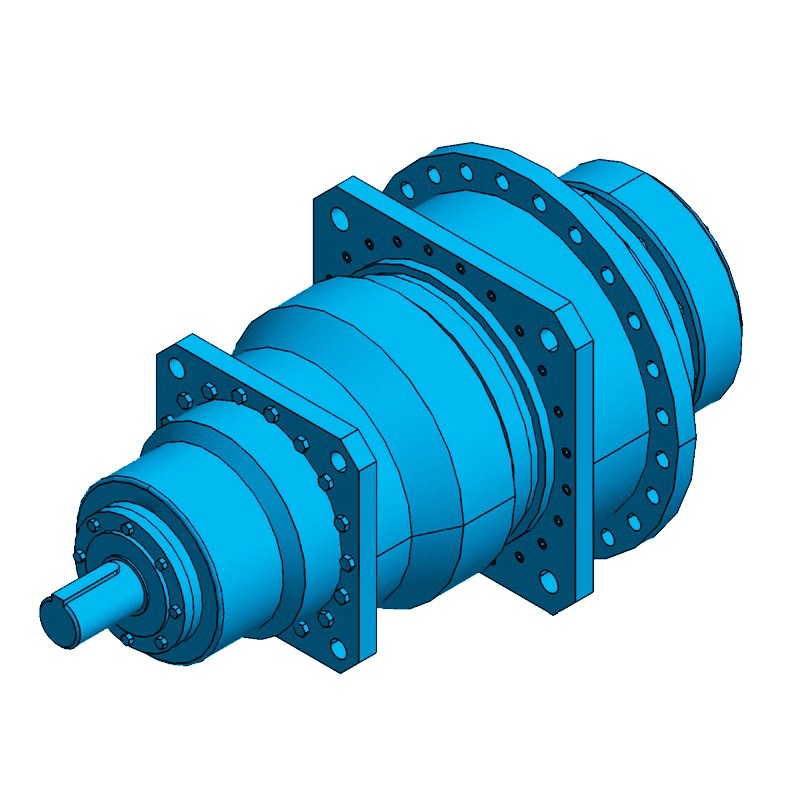

P3NA09~36 (i: 140-280) P series planetary standard type (coaxial) with locking disk hollow shaft

Planetary Gearpox

1）The sun wheel and planetary wheel are made of high quality quenching alloy steel, the ring gears adopt in hardened surfacealloy steel, all grinding gears.
2）Cast iron housing and steel/cast iron frame,all designed by computer simulation and stress analysis method,which will enlarge the loading capacity.
3）Highly modular design makes althe spare parts standardization and reducing the stock. lmprove delivery speed.
4）All bearings using roller bearings, the force part are import brand bearing.
5）The input and output side with radial skeleton seal, wherein the
output double seals. Lots of accessories for choose and can be used with other products of our company.

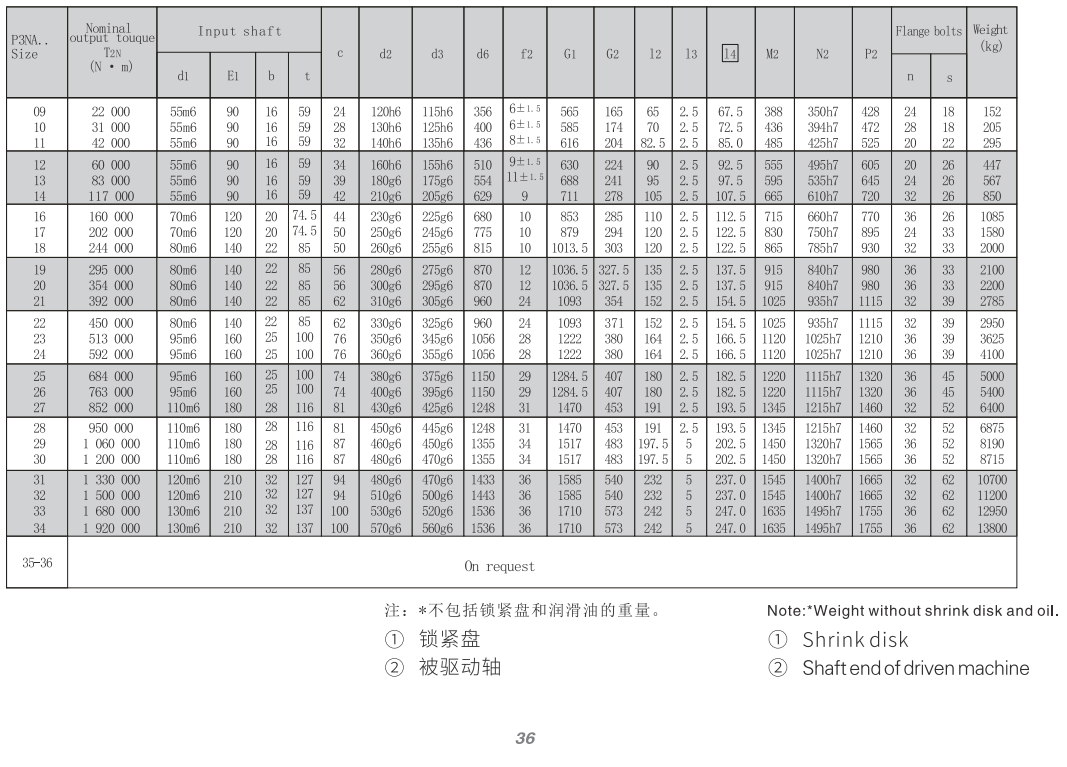

Specifications：
P3NA09 P3NA10 P3NA11 P3NA12 P3NA13 P3NA14 P3NA15 P3NA16 P3NA17 P3NA18 P3NA19 P3NA20 P3NA21 P3NA22 P3NA23 P3NA24 P3NA25 P3NA26 P3NA27 P3NA28 P3NA29 P3NA30 P3NA31 P3NA32 P3NA33 P3NA34 P3NA35 P3NA36
