How to extend the service life of sealing components for R77-3KW-23.37 helical gear reducer

To extend

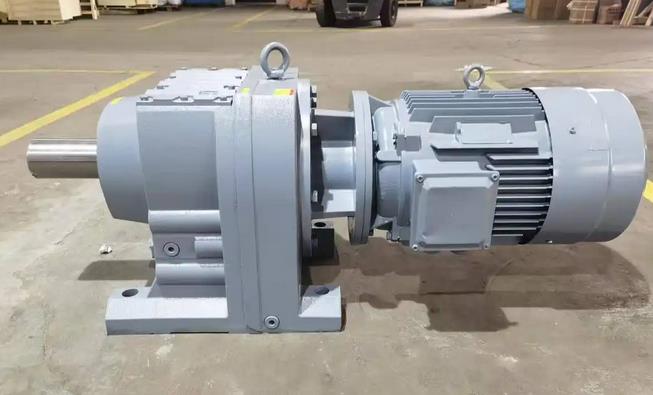

Gear reducer R77-3KW-23.37 helical gear
The service life of gearbox seals can be approached from the following aspects:
Correct installation

Choose suitable seals: Select seals with appropriate materials and specifications based on the working conditions of the R77 reducer, such as temperature, pressure, speed, etc. For example, in high-temperature environments, high-temperature resistant sealing materials such as fluororubber can be used.

Strictly follow the installation specifications: During the installation process, ensure that the sealing components are installed in the correct position to avoid distortion, deformation, or scratches. At the same time, appropriate installation tools should be used to apply pressure evenly to prevent the seal from being damaged by uneven force. For example, when installing the oil seal, a specialized oil seal installation tool should be used to smoothly press it onto the shaft neck.

Reasonable use and maintenance

Control operating parameters: Avoid operating the gearbox under conditions that exceed the rated load, speed, and temperature. Excessive load and speed will increase the wear of seals, while high temperature will cause the sealing material to age and harden, reducing sealing performance. For example, the load should be matched according to the rated power of the gearbox to avoid overload operation.

Regular inspection and maintenance: Regularly inspect the sealing parts of the gearbox to see if there are any signs of leakage, wear, or aging. Timely clean the dust, oil stains and other impurities on the surface of the seal to prevent them from entering the sealing gap and exacerbating wear. At the same time, regularly replace the lubricating oil to maintain its cleanliness, as excessive impurities in the lubricating oil can affect the sealing effect and accelerate the damage of the seals.

Prevent shaft movement and swing: Ensure that the installation foundation of the reducer is firm and avoid shaft movement and swing during operation. The unstable movement of the shaft will subject the seal to additional shear and friction forces, thereby shortening its service life. Therefore, it is necessary to regularly check the tightening of the installation bolts and tighten them in a timely manner if they are loose.

Improving the working environment

Keep clean: Try to keep the gearbox working in a clean environment, avoiding dust, particles, and other impurities from entering the sealed area. A protective casing can be installed for the gearbox to prevent the intrusion of external pollutants.

Control environmental temperature: If the working environment temperature is too high, appropriate cooling measures can be taken, such as installing cooling fans or cooling water pipelines, to control the temperature of the gearbox within the suitable working range of the sealing components.

Choose high-quality accessories

Choose high-quality seals: Purchase seals with reliable quality and good brand reputation. High quality seals are guaranteed in terms of material performance, processing accuracy, etc., which can better adapt to working conditions and extend their service life.

Consider the quality of gearbox accessories: In addition to the seals themselves, the quality of other accessories such as shafts, bearings, etc. of the gearbox can also affect the service life of the seals. If the surface roughness of the shaft does not meet the requirements or the bearings wear out, it will cause uneven stress on the seals, thereby shortening their service life. Therefore, it is necessary to choose high-quality gearbox accessories to ensure the operational accuracy and stability of the entire gearbox.
