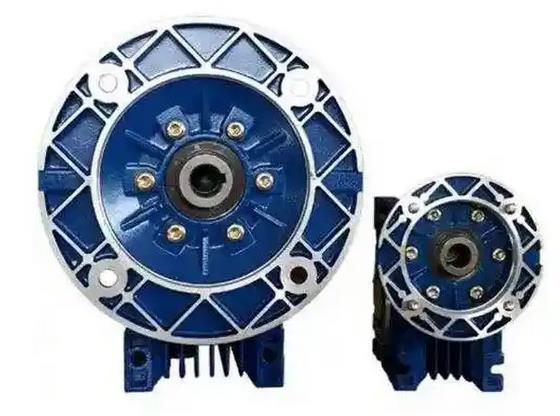

How to improve the service life of RV/NMRV/NRV130 aluminum alloy worm gear reducer

To improveRV/NMRV/NRV130

The service life of aluminum alloy worm gear reducer can be approached from the aspects of correct selection, installation and commissioning, operation, maintenance, etc. The specific methods are as follows:

Reasonable selection

Accurately calculate load: When selecting a reducer, it is necessary to accurately calculate the required torque, speed, and other parameters based on the actual working load, ensuring that the rated power and torque of the selected reducer can meet the working requirements of the equipment, and have a certain safety margin to avoid long-term operation of the reducer under overload conditions.

Considering the working environment: If the working environment is harsh, such as high temperature, humidity, and high dust, a gearbox with corresponding protection levels, such as IP54 and IP65 protection, should be selected to prevent dust, moisture, and other substances from entering the gearbox and damaging its components.

Correct installation and debugging

Installation accuracy: During installation, it is necessary to strictly follow the requirements of the installation manual to ensure the coaxiality and perpendicularity of the connection between the reducer, motor, and load equipment, and to avoid additional stress and vibration caused by installation errors, which may affect the normal operation and service life of the reducer.

Fixed firmly: Install the reducer firmly on the foundation to prevent looseness or displacement during operation, and be careful to avoid external impact and compression on the reducer.

Debugging and operation: After installation, perform no-load and load debugging to check the operation status of the reducer, including noise, vibration, temperature, etc. If any problems are found, adjust and eliminate them in a timely manner to ensure that the reducer is put into use in normal condition.

Correct use and operation

Avoid frequent starting and stopping: Try to minimize the frequent starting and stopping of the gearbox, as each time it is started, the gearbox will be subjected to significant current shock and mechanical stress, and frequent starting and stopping will accelerate the wear of components.

Control operating parameters: Strictly control the operating speed, load, and temperature of the gearbox to avoid exceeding its rated value. During operation, it is important to closely monitor the running status of the gearbox. If any abnormalities are found, the machine should be stopped for inspection in a timely manner.

Preventing reverse impact: For worm gear reducers with self-locking function, attention should be paid to preventing reverse rotation caused by external forces to avoid damage to components such as worm gears and worms.

Regular maintenance and upkeep

Regular inspection: Regularly inspect the gearbox, including visual inspection, connection part inspection, oil level inspection, gear wear inspection, etc., to promptly identify potential problems such as bolt loosening, oil leakage, gear wear, etc., and take corresponding measures to deal with them.
