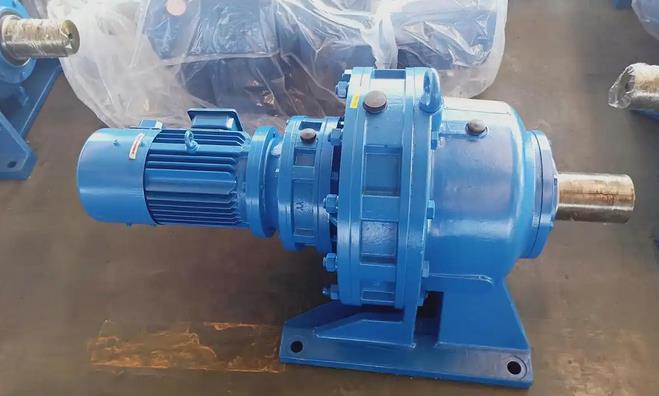

How to correctly install the horizontal XWE95-493 cycloidal pinwheel reducer

The following are the correct and maintenance methods for the horizontal XWE95-493 cycloidal pinwheel reducer:

install

Pre installation inspection: Check whether the appearance of the reducer is damaged or deformed, whether all components are complete, whether the lubricating oil is sufficient, and whether the connection size between the motor and the reducer matches.

Basic fixation: Choose a suitable installation location to ensure that the foundation is flat, sturdy, and able to withstand the load of the gearbox during operation. Use anchor bolts to firmly fix the gearbox on the foundation. The anchor bolts should be evenly tightened to prevent vibration and displacement of the gearbox during operation.

Connect the motor and gearbox: Ensure the coaxiality between the motor shaft and the gearbox input shaft, generally requiring a coaxiality error within 0.05-0.1mm. Couplings can be used for connection, and installation must strictly follow the installation requirements of the coupling to ensure a tight and reliable connection, avoiding equipment failure caused by loose connections.

Installation of output shaft connecting components: If the output shaft of the reducer is connected to other equipment such as gears, sprockets, or pulleys, attention should be paid to installation accuracy to ensure that the coaxiality or parallelism between the output shaft and the connecting components meets the requirements, and to prevent additional stress caused by improper installation, which may affect the normal operation of the reducer.

Lubrication system installation: For XWE95 reducers with lubrication systems, it is necessary to correctly connect the lubrication oil pipes to ensure smooth oil flow and no leakage. Add an appropriate amount of lubricating oil as required, and the oil level should be within the range specified on the oil gauge.

Install protective devices: According to the operating environment and safety requirements of the equipment, install necessary protective devices such as protective covers, limit switches, etc. to prevent accidents for operators and protect the gearbox from damage caused by external factors.
